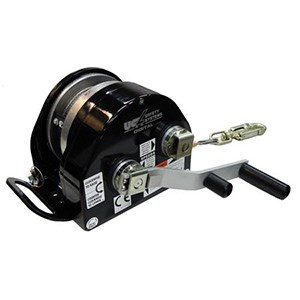

3M DBI/SALA 8518560 Advanced Digital 100 Series Winch with 60 feet of galvanized cable for use with Advanced Series davits, pole hoist, tank pod and side entry systems.  The Digital 100 Series winch includes a removable aluminum crank handle to utilize both our 9:1 and 4:1 drives.  These two drives offer the capability of retrieval/descent at average speeds from 13 ft/min up to 30 ft/min.  The UCL Advanced Digital Series winches are rated for a maximum working load of 450 lbs with an 11:1 safety factor.  Comes with 60 feet of 3/16 inch galvanized cable with a locking snap hook.  Has a digital usage indicator system that counts the revolutions of the drum to determine service intervals.  Includes braking system with 3 independent working pawls, centrifugal back-up brake, carrying handle and cable retainer spring.

• Man rated for raising, lowering or supporting personnel.
• Designed specifically for confined space entry/retrieval.
• Digital indicator monitors extent of winch use.
• The load can only move if the handle is turned. A friction brake is engaged by a minimum of 5 lbs weight.
• Triple redundant braking mechanism with centrigugal safety back up brake.
• Brake pad wear indicator constantly monitors the condition of the braking mechanism.
• Lightweight with durable, powder-coated cast aluminum housing.
• Working load 450 lbs.
• Self locking swivel snap hook.
• Sealed bearings at all contact points.
• All hardware is zinc plated.
• Removable crank handle.
• 60 feet of galvanized steel cable.
• Weight 30.50 lbs.
