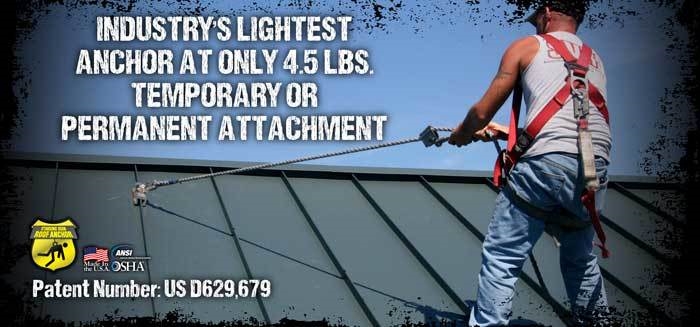

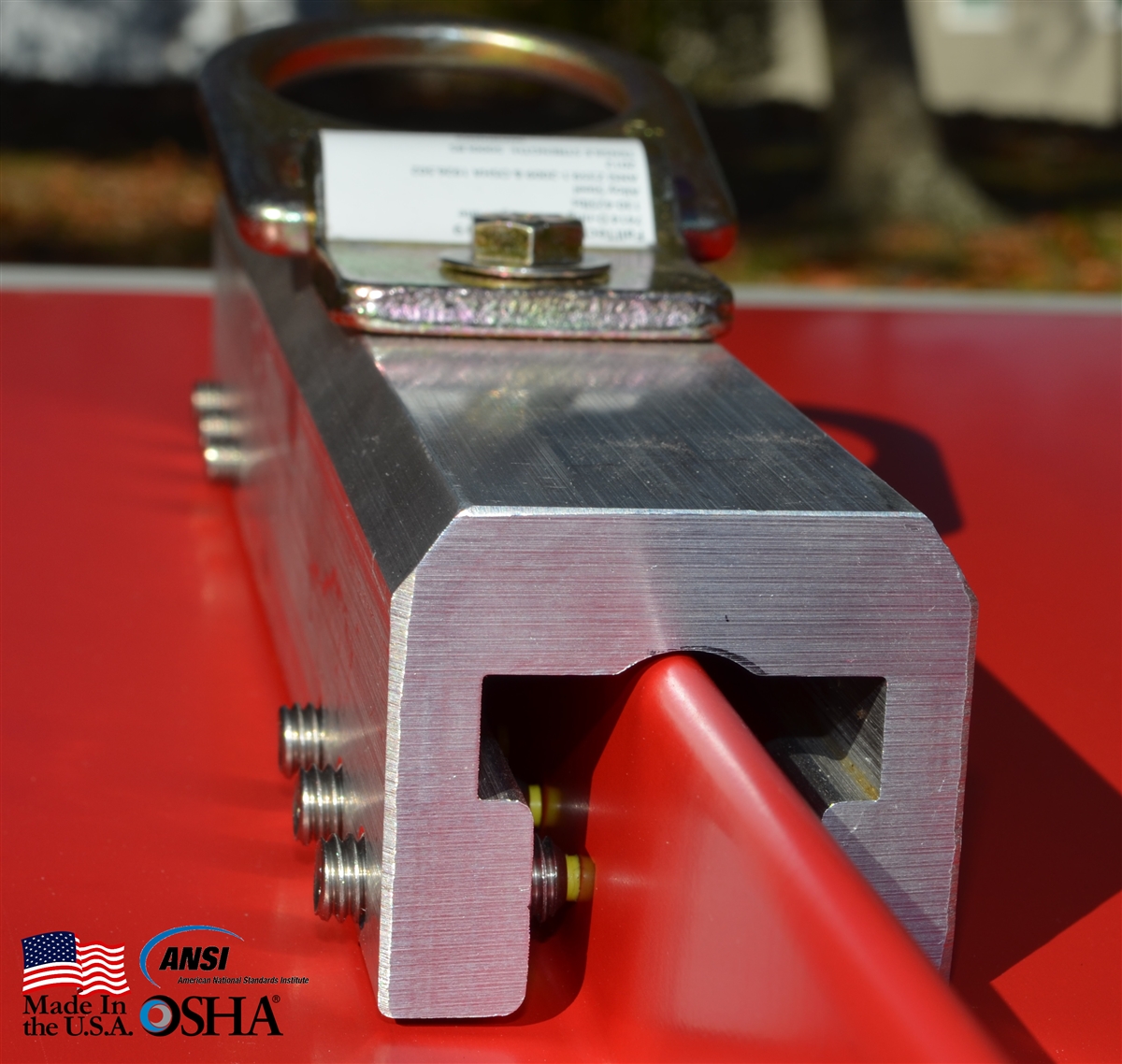

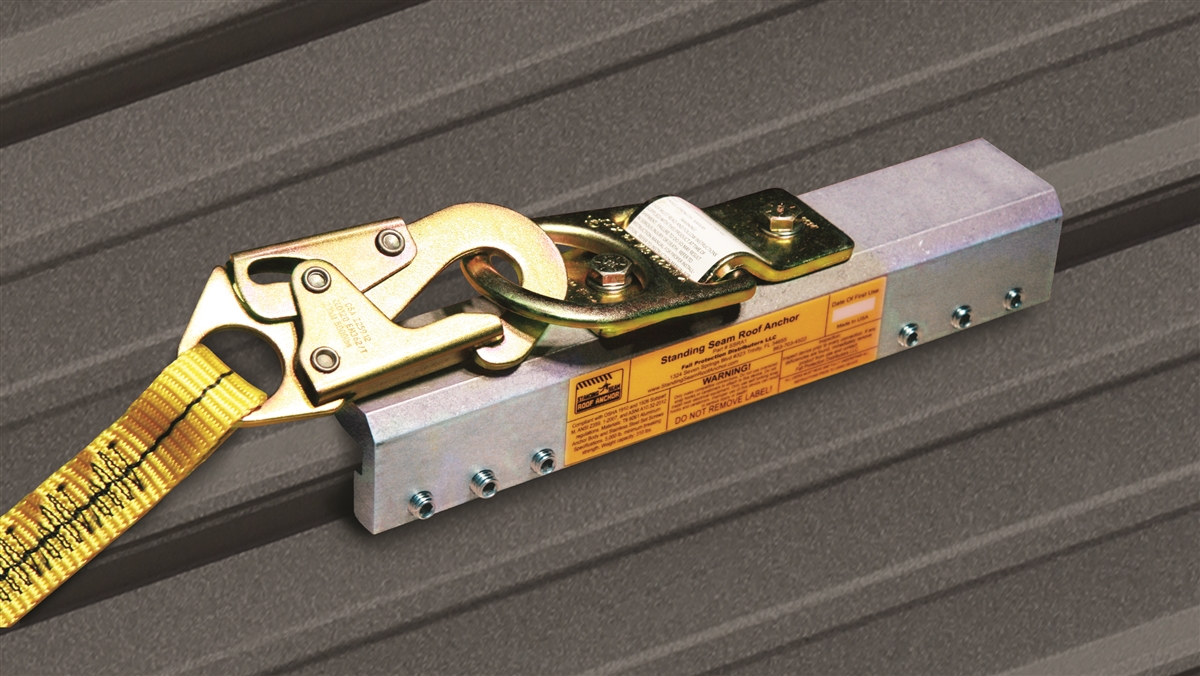

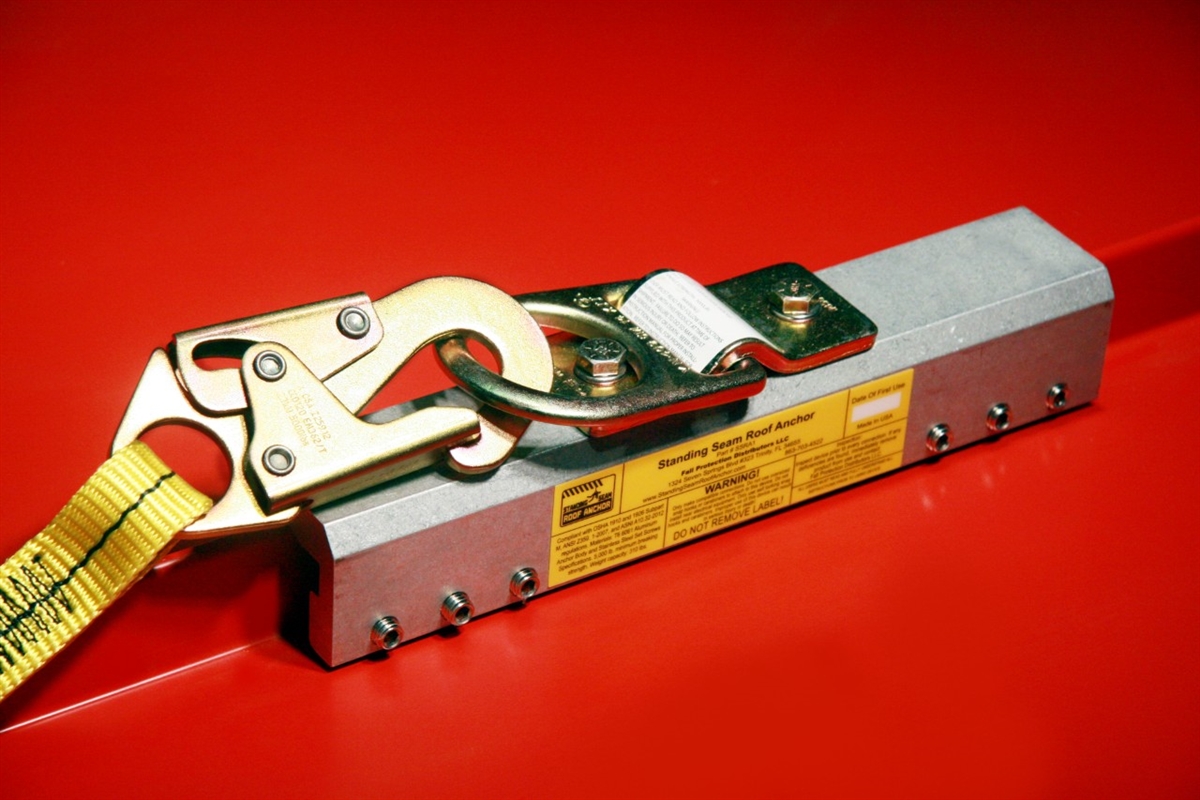

SSRA1 Standing Seam Roof Anchor installs on flat or sloped metal standing seam roof panels. Provides a non-penetrating temporary or permanent fall arrest anchor point. Light weight 6061-T6 solid aluminum body weighs 4.5 lbs. Patented universal fit design accommodates over 500 standing seam panel profiles. Made in USA with a lifetime warranty. Tested to 5,000 lbs load in all directions allowing users protection on either side of a peaked roof from the same anchor location. Approved for use with temporary horizontal lifelines. Average installation time is 2 minutes when using screw gun and micro torque wrench capable of reading in inch/lbs. Kit includes 12 stainless steel set screws, roof anchor and starter bit. For short term anchor use, it is recommended using optional nylon tipped set screws for less chance of seam scratching. Optional interchangeable mount for attachment of roof jacks, walk boards and swiveling retractable lifelines.
- Made in the USA.
- Single person anchor point.
- Patented, universal fit design non-penetrating roof anchor for use on over 500 standing seam panel profiles.

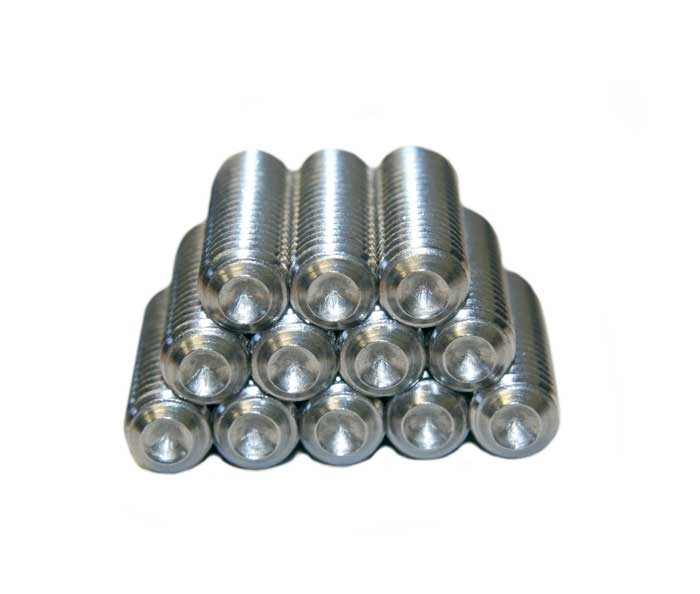

- Includes standing seam roof anchor body, 12 cupped tip stainless steel set screws and hex/allen starter bit.
- Lightest standing seam roof anchor on the market weighing 4.5 lbs.
- Approved for use as a temporary or permanent anchor.
- For use with T-seams, bulb seams, SnapLok, double Lok, MR-24 and many other profiles.
- Lifetime warranty.
- Tested to 5,000 lb load in all directions providing fall protection on both sides of a peaked roof with the same anchor.
- Average installation time of 2 minutes and 1 minute removal when using a screw gun and micro torque wrench measuring in inch/lbs.
- Approved for use with temporary horizontal lifelines.
- Optional nylon tipped set screws to reduce chance of seam scratching and for use on 24 gauge panels.
- Salt spray tested, non-corrosive T6 6061 aluminum body.
- Maximum user capacity including tools of 310 lbs.
- Optional interchangeable mount for attachment of roof jacks, walk boards, retractable lifelines, horizontal lifelines, etc.
- For use on minimum 24 gauge panels.
- Meets or exceeds OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007 and ANSI 10.32-2012.
|
|
|
 |
|
 |
|
