Guardian 11070 Diablo LE 8 Foot Retractable Lifeline With Steel Swivel Snap Hook

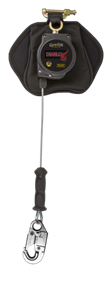

Guardian 11070 Diablo LE 8 Foot Retractable Lifeline



: $246.84

Qty:

Description Specs

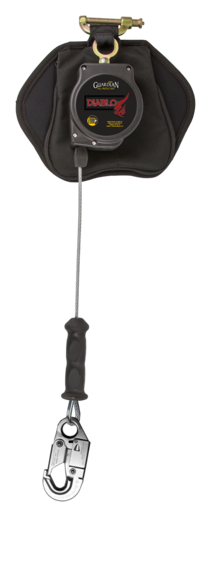

Guardian 11070 Diablo LE 8 Foot Self Retracting Lifeline with steel swivel snap hook and Quick-Bracket harness connector. The Diablo LE retractable lifeline is approved for sharp edge applications. Combination of the integral shock absorber and the abrasion and cut resistant steel cable provides rating of use over 0.005" radius sharp edge. The Quick-Bracket installs easily to the harness webbing below the back D-ring freeing it up for other uses. Swivel top and swivel steel snap hook for 360 degrees of movement. Protected shock pack cover acts as a cushion between the housing and the user's back for increased comfort. Compact housing weighs 5.27 lbs. Rated capacity of 310 lbs in leading edge applications and 420 lbs in non LE applications. In leading edge applications maximum free fall of 5 feet with fall clearance requirement of 13' to 17'. In non leading edge applications has maximum deceleration distance of 24 inches and maximum free fall clearance of 5.5 feet. Meets OSHA 1926 Subpart M and ANSI Z359.14-14 and A10.32-12 requirements.
