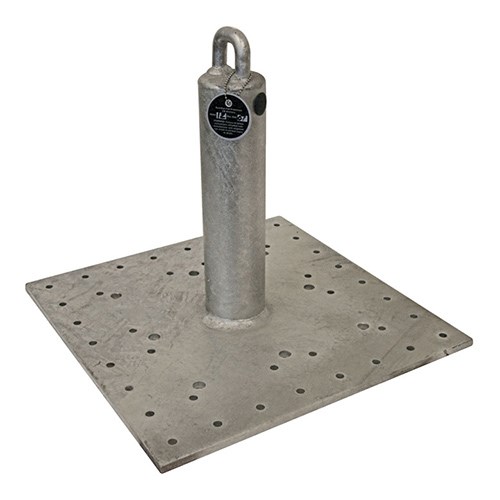

Guardian 00656 Permanently installed roof anchor designed for use on concrete substrate roof decks or special applications requiring a higher positioned anchorage.  Can be used as a single point stationary anchor point or as part of a horizontal lifeline system.

• For use on concrete roof substrates.
• 12” X 12” base.
• 18” high post.
• Post extends high enough above roof substrate to keep attachment point accessible after roof is complete.
• Round post accommodates most off-the-shelf flashing kits.
• Can be used as a stationary fall arrest anchor point or as part of a horizontal lifeline system.
• Stationary anchor point designed for use with shock absorbing lanyards, retractable lifelines or rope grabs and rope lifelines.
• 310 lbs capacity.
• Weight 32 lbs.
• Can be used with 2,000 PSI concrete or better with minimum anchor embedment of 3 ½”.
• Will resist minimum of 5,000 lbs of force applied in any direction.
• Meets OSHA and ANSI Z359.1 requirements for anchoring devices.
• CALL FOR FREIGHT ESTIMATE 614/876-8698.
